贴合分条机

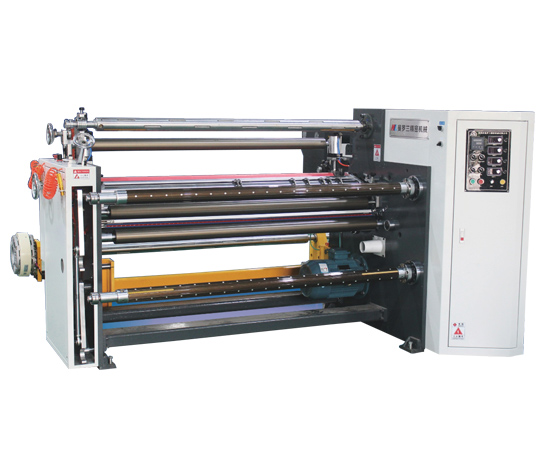

贴合分条机 RF-1300YT

本机适用于:光学膜、保护膜、离型膜、泡棉、纸类、铜箔、铝箔、等贴合分条复卷

Optical film, protective film, release film, foam, paper, copper foil,

aluminum foil, and other laminated strip rewinding

结构简单，操作简单实用，适合模切、印刷、涂布等行业配套

simple structure, simple and practical operation, suitable for die cutting, printing, coating and other industries.

序号 S/N	名称 Name	规格内容 Specification
1	机器型号 Machine Model	RF-1300YT
2	分切速度 Cutting speed	100 min
3	最大纸宽 Maximum Paper Width	1300 mm
4	最小分切宽度 Minimum Slitting Widt	30 mm
5	最大贴合材料宽度(选配) Maximum bonding material width (optional)	1250mm
6	原料最大放卷直径 Maximum unwinding diameter of raw material	中800 mm
7	贴合放卷最大直径 Sticking and unwinding maximum diameter	中400 mm
8	最大收卷直径 Maximum take-up diameter	中450 mm
9	收、放卷纸筒直径 Diameter of take-up and take-off reels	3寸
10	分切精度 Cutting accuracy	士0.15 mm
11	机器重量 Machine weight	2200 kg
12	电机电压功率 Motor voltage power	380v 9kw
13	机器尺寸(长宽高) Machine Dimensions (Length, Width and Height)	2300mm* 2200mm* 1300mm
