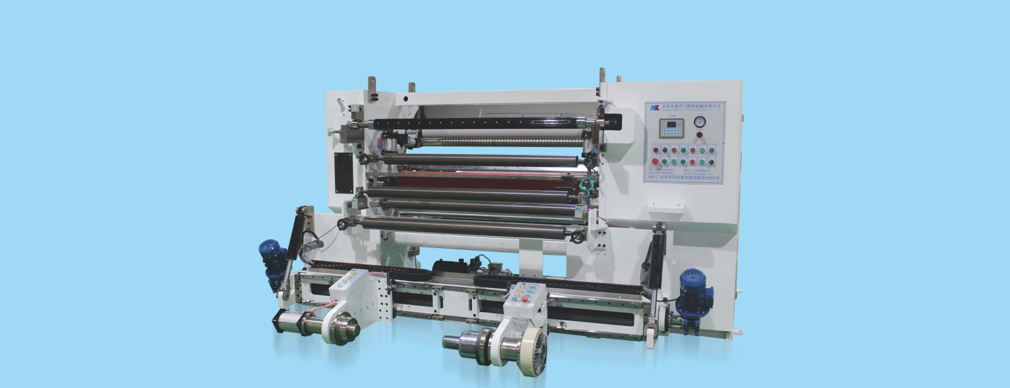

防护条分切机    MGX-1350

本机适用于:离型膜，PET, OPP,CPP,PVC，纸等卷材

Optical film, release film,PET, OPP, CPP, PVC, paper andso on

●放卷采用无轴放卷:放卷机构采用液压无轴中心式放卷,放卷臂可上下左右调节，最大承重为2000kg，配3“6”寸锥度塞头一套，即使在满负

荷情况下操作工只需简单操作按键即可轻易完成上卷动作，大幅减轻劳动强度,减少上卷时间，提高生产效率。

●纠偏使用交流超声波系统,超声波检测材料边缘，自动识别材料无需任何调整，交流电机驱动，反应灵敏，跟踪精确。

●整机操控人性化，10寸触摸屏人机操作界面、三菱PLC集中控制，开关按键、调节手柄、标志、颜色等的设计符合人体工程学和国家安全质量检

测标准要求，数字显示、变频调速、智能定长停机、紧急停车、过载保护等功能一应俱全。

●本机采用三马达连动控制，收料轴采用滑差轴，易更换，及维护。

●Uncoiling adopts shaftless uncoiling: the uncoiling mechanism adopts hydraulic shaftless center type uncoiling, the uncoiling arm can be

adjusted up and down and left and right, the maximum load is 2000kg, and a set of3 "6" inch taper plugs is provided. Even under full load, the

operator can easily complete the coiling operation by simply operating keys, greatly reducing labor intensity, reducing coiling time and

improving production efficiency.

●AC ultrasonic system is used to rectify the deviation. Ultrasonic wave detects the edge of the material and automatically identifies the material

without any adjustment. AC motor is used to drive the material. It is sensitive and accurate in response and tracking.

●Humanized control of the whole machine, 10-inch touch screen man-machine interface, Mitsubishi PLC centralized control, switch keys,

adjustment handle, logo, color design in line with the requirements of ergonomics and national safety and quality inspection standards, digital

display, frequency conversion speed regulation, intelligent fixed-length stop, emergency stop, overload protection and other functions.

The machine is controlled by three motors, and the material receiving shaft is slippery shaft, which is easy to be replaced and maintain.
